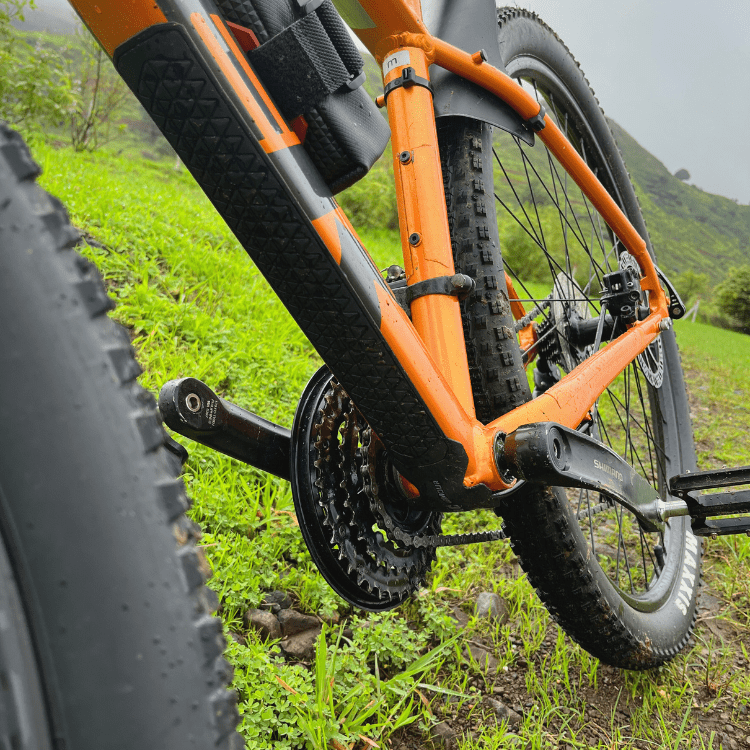

Your downtube takes the worst abuse on any bike — rocks and gravel flicked up by the front wheel hit it directly, chipping paint and, on carbon frames, risking real damage. The NAC Downtube Protector is a thick rubber guard that absorbs those strikes before they reach your frame. It fits in under five minutes with no tools. Here's how.
Before you start
The only preparation that matters is a clean surface. Wipe the full length of the downtube with a clean cloth to remove dust, oil, and old grime, and let it dry completely. Adhesive applied over dirt will lift at the edges within weeks.
Installation steps
- Clean the downtube along the full area where the protector will sit — typically the underside, facing the front wheel.
- Peel the backing off the protector, handling the adhesive as little as possible.
- Start at the head tube end. Position the protector at the top of the downtube and press it on, working your way down toward the bottom bracket.
- Smooth out air bubbles as you go. Press firmly from the centre outward with your thumbs so the protector follows the tube's curve cleanly.
- Finish with firm pressure along the entire length, including the edges, to bed the adhesive in.
Tips for a perfect fit
- Install at room temperature — adhesive bonds poorly in cold conditions.
- Avoid washing the bike for 24 hours after installation to let the adhesive cure.
- On curved or tapered downtubes, work slowly — the flexible construction wraps cleanly if you press progressively rather than all at once.
Wondering whether it's worth it? Read how a downtube protector can save your bike. And for the rest of the range, see the Protection Installation Guide.
